FPC Layout and Pin Mapping for TFT LCD Modules

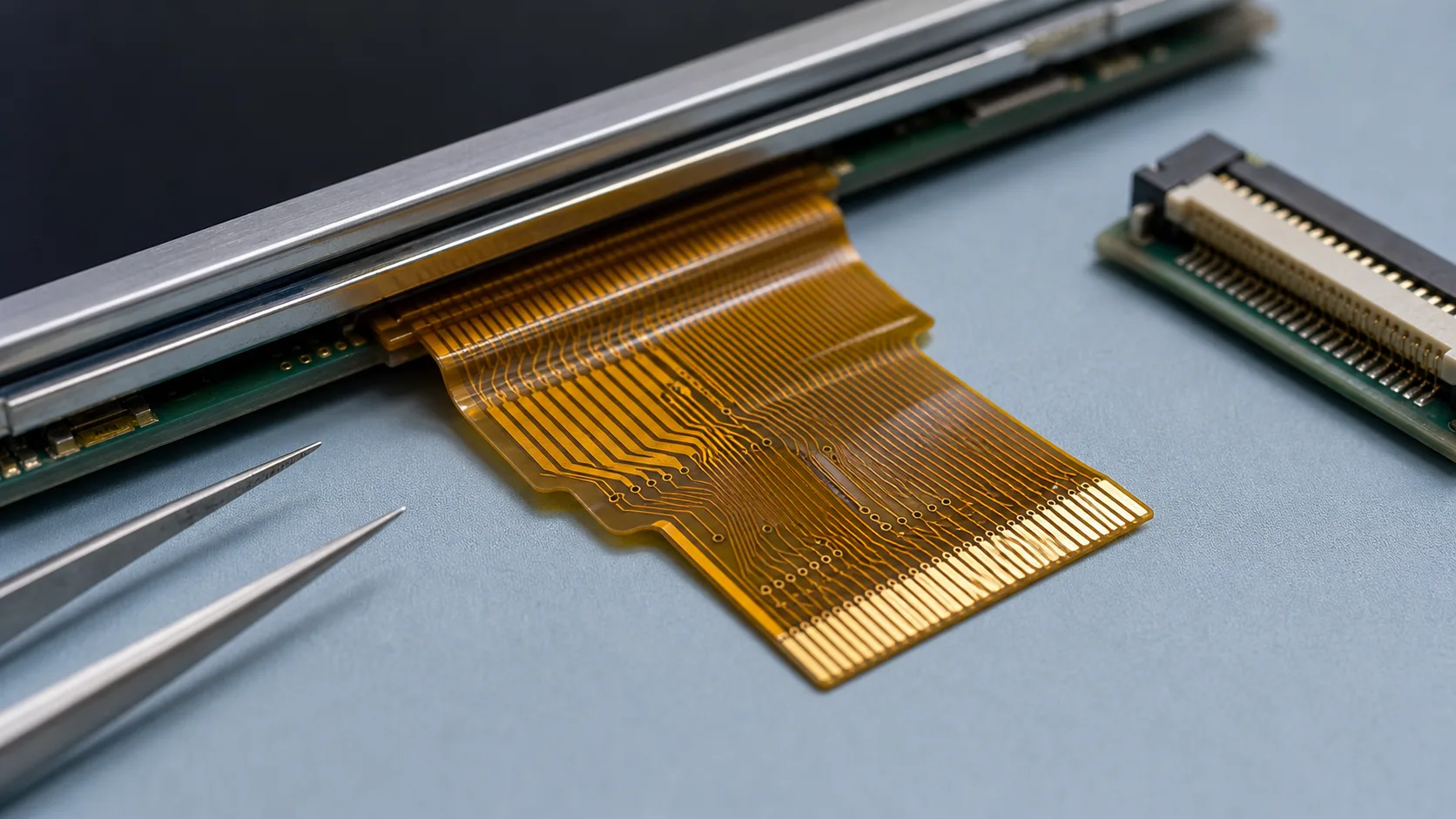

In embedded display design, FPC layout and pin mapping are often underestimated but are absolutely critical for ensuring reliable performance and long-term stability. The FPC — short for Flexible Printed Circuit — acts as the bridge between the TFT LCD panel and the mainboard, carrying high-speed data, control signals, and power lines in a compact, flexible form.

A well-designed FPC ensures:

• Signal integrity for high-speed interfaces like LVDS or MIPI-DSI.
• Electromagnetic compatibility in noisy industrial environments.
• Mechanical durability for long product lifetimes.
• Ease of manufacturing and assembly during mass production.

In this guide, we will go step-by-step through best practices for FPC layout and how to define pin mapping for different types of TFT LCD modules.

1. Understanding the Role of the FPC in TFT LCD Modules

An FPC in a TFT LCD module serves multiple purposes:

• Electrical interface: Carries image data, synchronization signals, touch input, and backlight control between the LCD and the controller board.
• Mechanical flexibility: Allows the display to be mounted in compact housings or angled positions without bulky rigid connectors.
• Integration of extra components: Some FPCs integrate touch controller ICs, EEPROMs, or even encryption chips like the ATECC608B.

For example, in industrial touchscreens, the FPC may have:

• LVDS data lines for display.
• I²C lines for touch panel control.
• PWM lines for backlight dimming.
• Ground planes for shielding.

2. FPC Layout Best Practices

2.1 Signal Grouping

Organizing signal lines logically is one of the most important layout considerations:

• Keep high-speed differential pairs (LVDS, MIPI) together and maintain consistent spacing to achieve controlled impedance.
• Place power and ground lines in positions that minimize interference.
• Isolate touch panel signals from high-speed video lines to prevent capacitive coupling.

Example:
In a 40-pin LVDS FPC, pins 1–10 might be dedicated to ground and power, pins 11–30 for LVDS pairs, and pins 31–40 for backlight and touch signals.

2.2 Grounding Strategy

Good grounding prevents return current issues:

• Distribute GND pins evenly along the connector rather than grouping them only at one end.
• Add ground shielding lines between groups of unrelated signals.
• In high-EMI environments, add grounded copper fill areas on unused layers.

2.3 Impedance Control

High-speed interfaces like LVDS (100 Ω differential) and MIPI-DSI (90 Ω differential) require:

• Consistent trace width and spacing across the entire length of the FPC.
• Avoiding sharp bends on high-speed lines — use gentle curves instead.
• Maintaining reference ground planes close to the signal layers.

2.4 Mechanical Considerations

Mechanical stress is a common cause of FPC failure:

• Maintain a bend radius of at least 10× the thickness of the FPC.
• Avoid routing critical high-speed signals in tight bend areas.
• Use stiffeners (PI or FR4) at connector ends for better insertion durability.

3. Pin Mapping in TFT LCD Design

Pin mapping is the assignment of each electrical signal to a specific pin in the connector. Getting this right ensures compatibility with both the display and the controller board.

3.1 Example: RGB Interface (40 Pins)

3.2 Example: LVDS Interface

LVDS pin mappings are more compact:

• LVDS0+/−, LVDS1+/−, LVDS2+/−, LVDSCLK+/−
• LVDS3+/− (only for 24-bit mode)
• Power, GND, backlight control

3.3 Example: MIPI-DSI Interface

MIPI-DSI uses even fewer pins:

• Four data lanes (pair)
• One clock lane (pair)
• VCC, GND, reset, backlight control

4. Common Mistakes in FPC Layout and Pin Mapping

1. Crossing high-speed lines over split ground planes → Causes impedance jumps.
2. Insufficient ground pins → Leads to higher EMI and unstable signal return.
3. Wrong pin order in connector definition → Requires a costly redesign.
4. No mechanical reinforcement → Leads to broken traces near connector after repeated bending.

5. Testing and Validation Process

Before going to mass production:

1. Continuity test: Ensure every pin has correct connection.
2. Short-circuit test: Detect any unintentional bridging.
3. Signal integrity test: Use an oscilloscope to check eye diagram quality.
4. System integration test: Confirm correct display initialization, touch input, and backlight control.

6. Related Engineering Topics

• What is TFT LCD — Learn how TFT LCD technology works and its role in embedded systems.
• Resolution & Aspect Ratio — Understand how resolution and aspect ratio impact design decisions.
• TN vs IPS vs VA — Compare three major LCD panel technologies to select the right one for your application.

Conclusion

Designing the FPC layout and defining pin mapping correctly can make the difference between a display that works flawlessly and one that fails in the field. For embedded developers, following good grounding, impedance, and mechanical practices ensures your TFT LCD will perform reliably in industrial, medical, and consumer products.
