MIPI vs LVDS vs RGB: Choosing the Right TFT LCD Interface

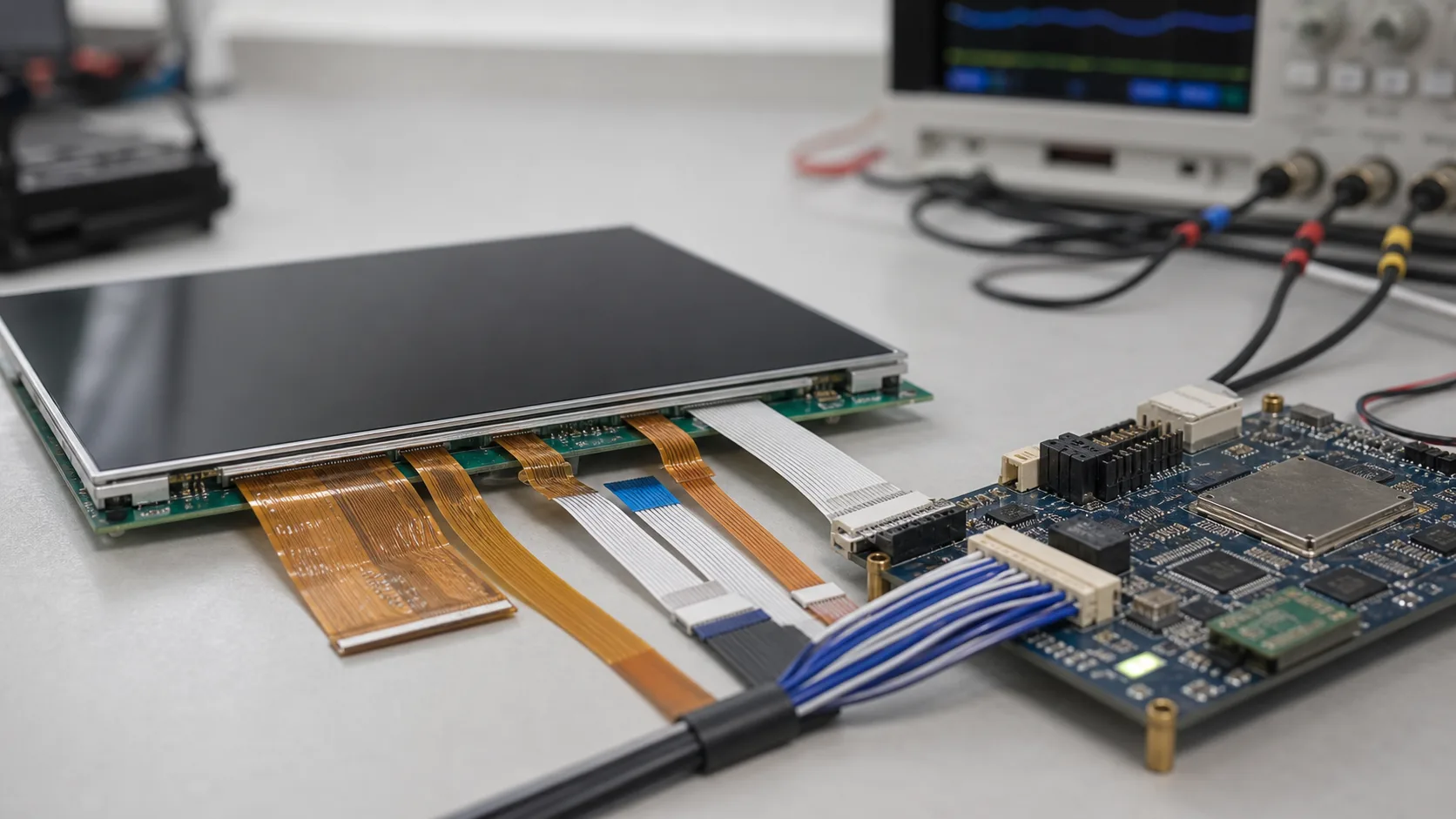

When integrating a TFT LCD module into an embedded system, choosing the right display interface is one of the first and most important decisions. The interface determines:

• How data is transmitted between the main processor and the display.
• The achievable resolution, refresh rate, and color depth.
• Power consumption, EMI performance, and cable length tolerance.

Three of the most common interfaces in industrial and embedded designs are:

• MIPI-DSI (Mobile Industry Processor Interface – Display Serial Interface)
• LVDS (Low Voltage Differential Signaling)
• RGB Parallel Interface

This guide provides a detailed comparison of MIPI vs LVDS vs RGB, explaining how each works, their strengths, weaknesses, and the scenarios where they perform best.

1. Overview of Each Interface

MIPI-DSI

MIPI-DSI is a high-speed serial interface developed for mobile devices but now widely used in tablets, automotive, and embedded panels. It uses differential signaling over multiple lanes (typically 1, 2, or 4 data lanes plus a clock lane) to transmit pixel data.

Key Features:

• High bandwidth per lane, supporting resolutions beyond Full HD.
• Low pin count, reducing connector size and FPC complexity.
• Packet-based transmission with embedded commands.

LVDS

LVDS is also a high-speed differential interface, but unlike MIPI-DSI, it uses constant clock and serialized pixel data spread across multiple pairs. LVDS has been the standard for laptops, industrial monitors, and large displays for decades.

Key Features:

• Excellent noise immunity and long cable support (up to several meters).
• Well-suited for high-resolution panels (up to 4K in some configurations).
• Widely supported in industrial-grade SBCs.

RGB Parallel Interface

RGB is the simplest and oldest method of connecting an LCD. It sends each pixel’s color data in parallel across multiple pins, synchronized with separate clock and control signals.

Key Features:

• Direct pixel mapping — each line carries a specific bit of color data.
• Low protocol complexity, easy to implement in MCUs.
• Typically used for small and medium-size TFTs (QVGA to WXGA).

2. Signal Structure and Pin Count

Observation:

• MIPI has the fewest pins, making it ideal for space-constrained designs.
• LVDS has more pins but is still efficient for long-distance connections.
• RGB requires the most pins, increasing FPC size and EMI risk.

3. Speed, Resolution, and Color Depth

• MIPI-DSI: Supports extremely high bandwidth — a 4-lane MIPI-DSI link can easily drive 1080p or even 2K/4K panels.
• LVDS: Typically supports resolutions from XGA (1024×768) to 4K depending on the number of lanes and bit depth.
• RGB: Limited by parallel clock speed; higher resolutions require more pins and faster clocks, which can lead to EMI and signal degradation.

4. Power Consumption

• MIPI-DSI: Low power per bit due to high efficiency of differential signaling.
• LVDS: Moderate power use; efficient for long-distance but requires constant clocking.
• RGB: Highest power consumption due to many simultaneous switching lines.

5. EMI and Cable Length

• MIPI-DSI: Best for short FPC runs (less than 30 cm); not ideal for long cables.
• LVDS: Excellent EMI immunity; can run over shielded twisted pairs for several meters.
• RGB: Poor EMI performance over long cables; best for short distances within the same PCB.

6. Use Cases

7. Design Considerations

When choosing between MIPI, LVDS, and RGB:

1. Processor Support: Check if your SoC natively supports the interface or requires a bridge chip.
2. Panel Availability: Some LCD models are only available in one interface type.
3. Mechanical Constraints: FPC width and connector size may dictate interface choice.
4. Environmental Factors: EMI-heavy environments may favor LVDS over MIPI.

8. Software and Driver Impact

The interface choice also affects software work. RGB panels are often straightforward because the processor outputs pixel timing directly, but the firmware still needs correct values for pixel clock, horizontal sync, vertical sync, front porch, back porch, and polarity. If one timing value is wrong, the image may shift, tear, flicker, or fail to appear.

MIPI-DSI panels usually need an initialization command sequence. The display may require specific DCS commands, lane configuration, sleep-out timing, and backlight enable timing before it shows an image. This is not difficult when the panel vendor provides a complete sequence, but it becomes risky if documentation is incomplete.

LVDS is often stable once timing is correct, but the system still needs the right mapping format, such as JEIDA or VESA, and the correct bit depth. A mismatch may produce wrong colors even though the image appears otherwise stable.

For software planning, ask the panel supplier for:

9. Bridge ICs and Conversion Risk

Many real products use bridge ICs because the processor and the preferred display do not share the same interface. For example, an MCU or application processor may output RGB while the selected panel requires LVDS, or an SBC may expose MIPI while the available industrial display uses LVDS.

Bridge chips solve this mismatch, but they add engineering work. They require power rails, configuration pins or firmware control, crystal or clock inputs, and careful PCB layout. They may also introduce startup dependencies: the bridge must be configured before the panel can receive valid timing.

The main risks are:

• Extra BOM cost and board area.
• Longer bring-up time.
• Additional EMI source.
• Supply-chain dependency on another IC.
• Possible limits on refresh rate or color depth.

A bridge is often the right answer, especially when it allows a proven display module to be used with an existing mainboard. It should simply be treated as an active subsystem, not as a passive cable adapter.

10. Practical Selection Matrix

For early product planning, this simplified matrix is useful:

No interface is universally best. The right choice is the one that matches the processor, display size, resolution, cable length, certification target, and expected production volume.

11. Integration in Embedded Systems

If you are working with ARM-based SBCs like Rockchip PX30, RK3566, or Allwinner A64:

• MIPI is often used in high-resolution touch panels for smart home and consumer devices.
• LVDS remains common for industrial TFTs with wide temperature ranges.
• RGB is still popular for low-cost control panels where resolution demands are modest.

Related Articles:

• What is TFT LCD — A complete introduction to TFT LCD technology.
• TN vs IPS vs VA — Compare three major LCD panel technologies to select the right one for your application.
• Resolution & Aspect Ratio — Understanding the impact of resolution on interface choice.

12. Migration and Conversion

In some cases, you may need to convert between interfaces:

• RGB → LVDS: Use a timing controller (TCON) or bridge IC like the TI SN75LVDS83B.
• MIPI → LVDS: Use bridge chips such as the Lontium LT8918.
• LVDS → MIPI: Less common, but possible with dedicated ICs.

These conversions introduce latency, power overhead, and PCB complexity, so it’s better to select the right interface from the start.

13. Conclusion

Choosing between MIPI, LVDS, and RGB is not just about technical capability — it’s about balancing cost, complexity, environmental requirements, and future scalability.

• Choose MIPI if you need high resolution in a compact, low-power form factor.
• Choose LVDS if you need robust, long-distance transmission with good EMI immunity.
• Choose RGB if you are designing a low-cost, small-screen embedded product with simple requirements.

For a neighboring design question, review optical bonding for consumer touch screens before the front cover, PCB, or display interface is locked. The broader engineering background in touchscreen cover lens design can help prevent late changes.
