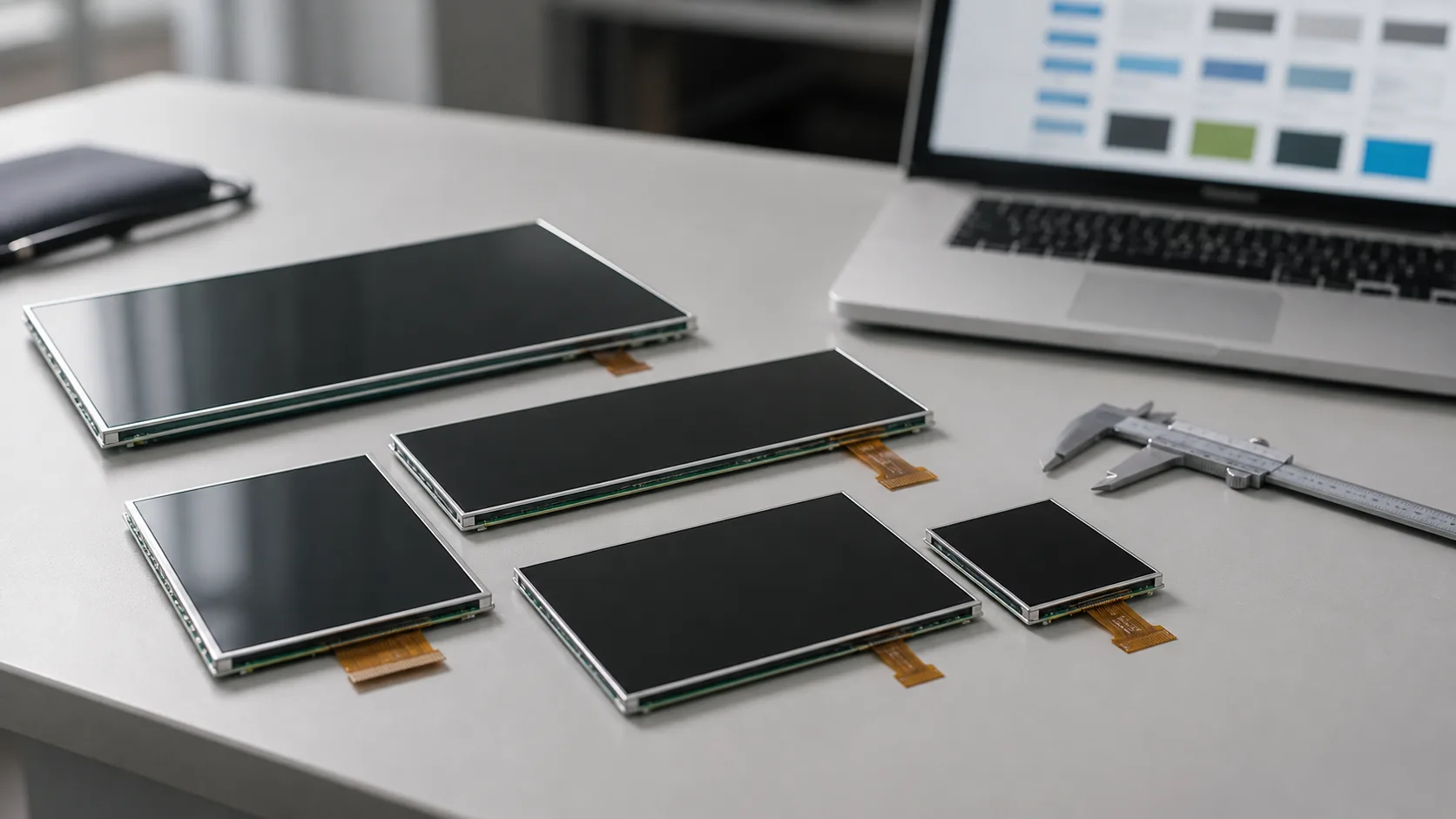

Understanding Resolution and Aspect Ratio in TFT LCD Displays

When designing or selecting a TFT LCD for an embedded product, two critical technical parameters to understand are resolution and aspect ratio. These factors greatly influence user experience, image clarity, UI layout, and even performance in embedded systems such as HMI panels, control terminals, or smart IoT devices.

This article explores both concepts in depth, helping developers and engineers make informed choices when specifying displays for industrial and consumer applications.

➡️ See related analysis: TFT Display Interfaces for Embedded Systems

📀 What is Resolution?

Resolution refers to the number of pixels that make up the display area. It is typically represented as width × height in pixels. For example:

• 800 × 480 (commonly seen in 7-inch embedded displays)
• 1024 × 600
• 1280 × 720 (HD)
• 1920 × 1080 (Full HD)

Each pixel can display a specific color, and the more pixels you have, the sharper and more detailed the image can appear.

Pixel Density (PPI)

Another important factor is PPI (pixels per inch). Two screens with the same resolution may have different PPIs depending on their physical size. Higher PPI usually means crisper images — especially important for small displays like wearables or handheld medical devices.

📏 What is Aspect Ratio?

The aspect ratio is the ratio between the width and height of the display area, often simplified:

• 4:3 (traditional)
• 16:9 (widescreen)
• 5:3 or 8:5 (common in industrial panels)

Aspect ratio affects how UI content is arranged. A 4:3 screen may feel more balanced for forms or lists, while a 16:9 display is ideal for multimedia or camera previews.

Common Aspect Ratios in Embedded Systems

🎯 Choosing the Right Resolution for Embedded Applications

When selecting a resolution for your TFT LCD, consider:

1. Content Type

   • Text-heavy? Go for higher resolution and PPI.
   • Graphical UIs? Balance resolution with GPU capabilities.

2. Processor and Memory

   • Higher resolution = higher frame buffer = more memory use.
   • Ensure your SoC (e.g., Rockchip PX30, RK3566) supports it.

3. Power Budget

   • Larger resolutions often consume more power due to greater backlight and data throughput needs.

4. Touch Interface Compatibility

   • Capacitive touch panels (CTP) often scale well with resolution.

🪮 Aspect Ratio Considerations for UI/UX

1. UI Layout

Wide screens (e.g., 16:9) allow more horizontal space — good for sidebars or multi-pane interfaces. Square-ish ratios (e.g., 4:3) are better suited for forms or single-column content.

2. Compatibility

If your application uses pre-designed Android layouts or LVGL-based UI, ensure they scale appropriately across the aspect ratios.

3. Orientation Flexibility

Vertical vs horizontal orientation may influence your aspect ratio decision. Many smart IoT devices are portrait-oriented, while HMI panels are often landscape.

🧩 Interface Impacts: LVDS, MIPI, RGB

Resolution and aspect ratio also impact hardware interface selection:

• LVDS: Supports high-resolution panels with low EMI; great for industrial use.
• MIPI DSI: Efficient for high-resolution compact displays; often used in consumer devices.
• RGB Parallel: Simple, but typically limited to lower resolutions.

Choose the interface based on resolution support, EMI tolerance, and integration complexity.

⚙️ Calibrating Resolution with Backlight and Touch

• Backlight Brightness: Higher resolution displays may require brighter backlight, impacting power consumption.
• Touch Controller Mapping: Ensure the touch coordinate system maps accurately to the pixel layout.

Scaling, Rendering, and Real UI Density

Resolution should not be judged only by the pixel number printed in the data sheet. The important question is whether the product can render its real interface clearly at the intended viewing distance. A 480×272 screen can work well for a simple appliance panel with large icons, while the same resolution may feel cramped for settings pages, charts, maps, or multilingual text.

For embedded Linux, Android, Qt, or LVGL projects, the UI team should define a practical density target early:

This is where physical size and resolution interact. A 7-inch 1024×600 display gives more layout room than an 800×480 version, but it also increases frame buffer size and may require a stronger processor. If the UI uses animations, camera preview, charts, or anti-aliased fonts, the graphics pipeline must be sized for the actual refresh rate, not only for a static screen.

Touch Accuracy and Safe Control Size

Touchscreen products need an additional check: can users reliably touch the controls? Higher resolution does not automatically improve usability if buttons are drawn too small. A capacitive touch controller reports coordinates across the panel surface, but the UI still needs enough physical target size for fingers, gloves, and movement.

For most consumer and industrial products, important controls should be designed around physical dimensions rather than pixel counts. A button that looks acceptable on a design mockup may become difficult to hit on a small 2.4-inch or 2.8-inch panel. This matters even more for elderly users, wet fingers, gloves, or devices mounted at an angle.

Before final panel selection, test a real-size UI mockup on the target display. Check text, icons, spacing, and touch accuracy in the actual product orientation. This often reveals problems that are invisible in a desktop design file.

Common Resolution Selection Mistakes

Several mistakes appear repeatedly in embedded display projects:

1. Choosing the highest available resolution without checking processor bandwidth.
2. Reusing a phone-style UI on a much smaller display.
3. Ignoring portrait orientation until late software integration.
4. Selecting a display before deciding the minimum readable font size.
5. Assuming two panels with the same diagonal size will feel similar even when their aspect ratios differ.

The safer approach is to start from the content: how many lines of text, how many controls, what type of graphics, and what viewing distance. From there, choose the smallest resolution that gives comfortable readability with acceptable performance margin.

📊 Real-World Example: 7" vs 10.1" Display

🏁 Summary

Understanding resolution and aspect ratio is essential for selecting the right TFT LCD display for your embedded system. These parameters affect:

• Visual clarity and UI layout
• Software rendering performance
• Interface design and power efficiency

Always evaluate your use case, processor capability, and UI design goals before choosing a display. An informed decision at this stage can prevent major redesigns down the line.
