What is TFT LCD?

TFT LCD (Thin-Film Transistor Liquid Crystal Display) is a sophisticated display technology used extensively across modern electronics. From smartphones and tablets to factory HMIs and medical monitors, TFT LCDs form the visual interface of countless devices. This article presents an in-depth look at TFT LCD technology—its working principle, structure, advantages, variants, and applications.

Introduction to TFT LCD Technology

TFT LCDs belong to the family of active-matrix displays. Each pixel is coupled with a thin-film transistor, enabling independent and accurate control of image rendering. This technology surpasses passive matrix displays in speed, contrast, and overall quality.

Key Characteristics of TFT LCDs:

• High image quality and contrast ratio
• Low power consumption
• Fast refresh rates and low latency
• Scalability for various sizes
• Durable and lightweight designs

Learn more about TFT and LCD basics from Panelook.

How TFT LCD Works

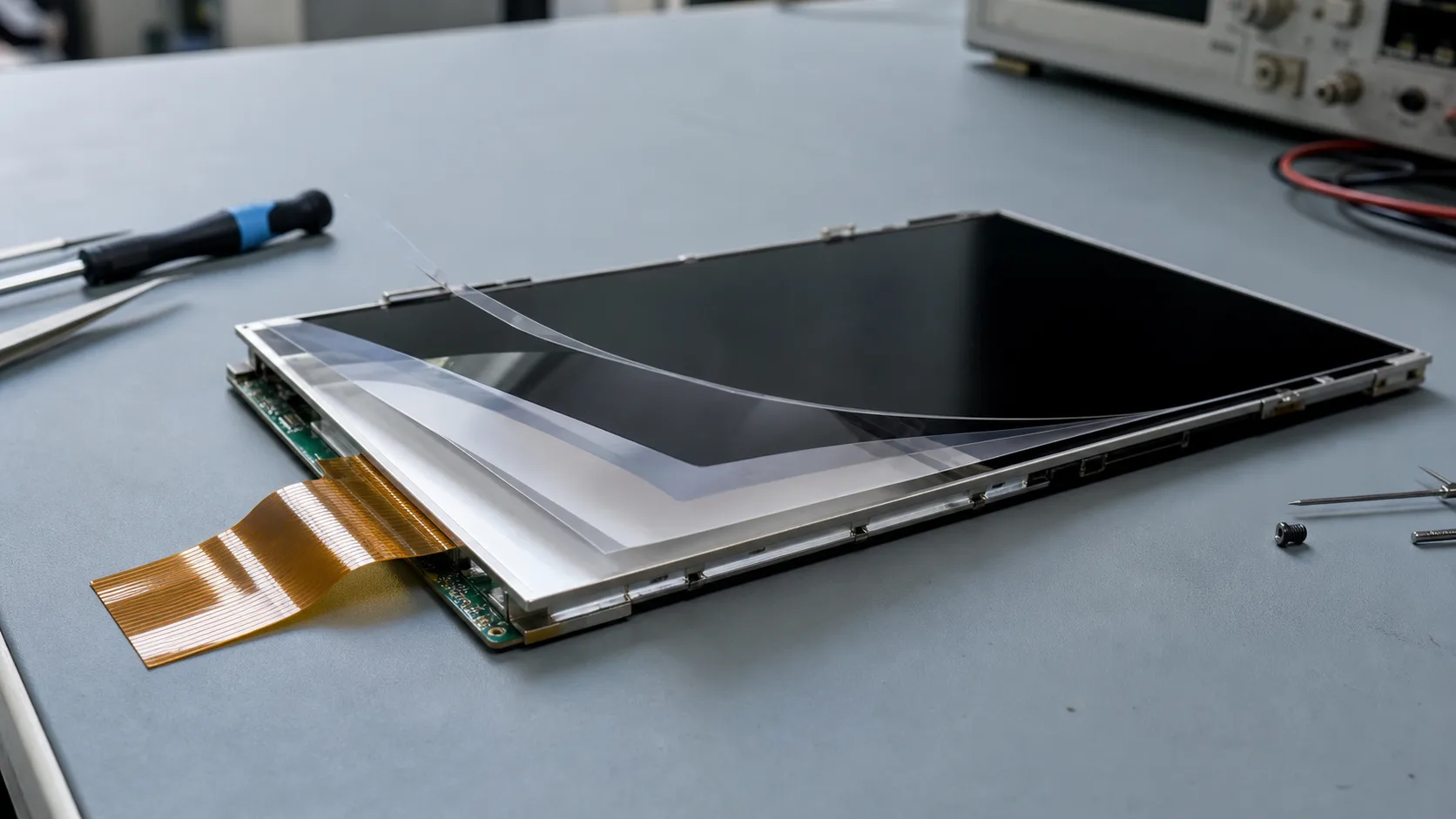

At its core, a TFT LCD manipulates liquid crystals using electrical voltage. A typical structure includes:

1. Backlight (LED or CCFL) – Illuminates the panel.
2. Polarizer – Filters light waves to allow only specific orientations.
3. TFT substrate – Contains transistors and electrode structures.
4. Liquid crystal layer – Reorients molecules to modulate light.
5. Color filter – Adds RGB color layers to generate full-color images.
6. Top polarizer – Further filters and aligns outgoing light.

Each pixel’s brightness and color are controlled via the voltage applied to its respective transistor.

Samsung Display offers insights into the underlying physics of TFT LCD modules.

Advantages of TFT LCD Technology

1. Superior Visual Quality

TFTs deliver vivid colors and high-definition output suitable for applications demanding fine detail, like medical imaging or professional design.

2. Energy Efficiency

TFT displays, especially with LED backlighting, consume less power compared to CRTs or OLEDs under bright environments.

3. Wide Availability & Cost Effectiveness

Mass production and mature manufacturing technologies have made TFT LCDs accessible and economical.

4. Versatility

From tiny 1" wearables to 100" industrial displays, TFT LCDs span a huge range of sizes and use cases.

5. Compatibility

They support multiple interface standards like RGB, LVDS, eDP, and MIPI DSI.

Types of TFT LCD Panels

TFT LCD technology supports multiple subtypes based on liquid crystal alignment:

TN (Twisted Nematic)

Twisted Nematic panels are among the earliest and most cost-effective types of TFT LCDs. They work by twisting liquid crystals 90 degrees to modulate light, resulting in fast response times.

Advantages:

• Low cost: Ideal for price-sensitive consumer electronics.
• Fast response time: Good for gaming monitors or simple UI interfaces.

Disadvantages:

• Poor color accuracy: Limited color depth and reproduction.
• Narrow viewing angles: Especially in vertical directions; colors may invert at extreme angles.

TN panels are often found in budget laptops, older LCD monitors, and some embedded systems that don’t prioritize image fidelity.

IPS (In-Plane Switching)

IPS panels align liquid crystals parallel to the substrate rather than twisting them, significantly improving the consistency of color and light transmission.

Advantages:

• Wide viewing angles: Almost 178° from all directions.
• Accurate and consistent colors: Suitable for applications that require color fidelity, like medical imaging or touch panels.
• Good readability: Even under oblique angles or in bright conditions.

Disadvantages:

• Higher cost than TN panels.
• Moderate response time: Some variants may be slightly slower than TN for high-speed applications.

IPS has become the standard in smartphones, tablets, and premium industrial touchscreens.

VA (Vertical Alignment)

VA panels align the liquid crystals perpendicular to the substrates when no voltage is applied. When voltage is present, they tilt to allow light to pass through.

Advantages:

• High contrast ratio: Often exceeding 3000:1, which is superior to IPS and TN.
• Deep blacks and rich tones: Ideal for displaying high-contrast data or controls.
• Good color reproduction: Especially for darker tones.

Disadvantages:

• Moderate viewing angles: Better than TN but not as wide or consistent as IPS.
• Slower response times: Especially in older or cheaper VA panels.

VA is commonly used in automotive displays, industrial control panels, and some consumer TVs.

Advanced Variants (AHVA, ADS, PLS)

These are refinements of IPS technology developed by different manufacturers, offering slight improvements in specific areas.

• AHVA (Advanced Hyper-Viewing Angle) by AUO: Enhances viewing angles and response times over traditional IPS.
• ADS (Advanced Super Dimension Switch) by BOE: Improves panel uniformity and touch performance.
• PLS (Plane-to-Line Switching) by Samsung: Offers better brightness and lower production costs compared to standard IPS.

These variants maintain the core strengths of IPS—excellent color accuracy and viewing angle—while tuning performance for specific applications such as medical touchscreens, high-resolution control interfaces, or energy-efficient embedded devices.

Display Ninja explains panel differences in greater detail.

TFT LCD in Industrial vs Consumer Applications

Common Applications of TFT LCD

1. Consumer Electronics

• Smartphones, tablets, laptops
• TVs, gaming monitors

2. Industrial Equipment

• Human-Machine Interfaces (HMIs)
• Factory control panels and instrumentation

3. Automotive Systems

• Digital dashboards and rear-seat displays
• Navigation and infotainment systems

4. Medical Imaging Devices

• Portable ultrasound, patient monitors
• High-contrast surgical displays

5. Embedded Systems & IoT

• Smart thermostats and control panels
• Home automation touchscreens

Key Specifications to Evaluate

When choosing a TFT LCD module for your application, consider:

• Resolution and size: Impacts clarity and usability
• Brightness and contrast ratio: Critical for outdoor or medical use
• Touch support: Resistive for gloves, capacitive for multi-touch
• Interface: LVDS, MIPI DSI, RGB
• Power budget: Especially for battery-powered systems
• Mechanical fit: Frame and FPC compatibility

Arduino’s embedded display guide provides useful hardware integration tips.

Comparison: TFT LCD vs OLED vs e-Paper

Emerging Trends in TFT LCD Technology

1. Higher Resolutions & Pixel Density

TFT panels are now available in Full HD and 4K resolutions even in 7–10” sizes.

2. Flexible & Curved TFT Displays

Plastic substrates allow curved or foldable designs for automotive or wearable devices.

3. Mini-LED & Local Dimming Backlights

Enhance contrast and HDR performance without sacrificing lifespan.

4. Touch + Display Integration

Optical bonding and on-cell touch reduce layer count and improve sunlight readability.

5. AI-Powered Visual Processing

TFT modules with embedded processors are capable of rendering AI-enhanced interfaces in real-time.

Conclusion

TFT LCD technology continues to evolve and maintain dominance across diverse fields—from industrial automation and automotive electronics to consumer gadgets. Its flexibility, cost-effectiveness, and improving performance ensure it remains a cornerstone of modern display systems.

Whether you’re building an embedded controller, upgrading a smart HMI, or developing a rugged portable device, understanding TFT LCD fundamentals will help you make informed display decisions and deliver excellent user experiences.
